Doosan LYNX 2100 LSYB, Bj. 2019_IntNr231662

Açıklama

Konum: Almanya, Baden-Württemberg Güneybatı

Durum: Kullanılmış

Üretici firma: DOOSAN-PUMA

Model: DOOSAN-PUMA

İnşaat yılı: 2019

Çalışma saatleri: 9000

Zum Verkauf steht ein leistungsfähiges und vielseitiges CNC-Dreh-/Fräszentrum Doosan LYNX 2100 LSYB, Baujahr 2019, mit ca. 9.000 Betriebsstunden.

Teknik veriler

Hersteller: Doosan Machine Tools
Modell: LYNX 2100 LSYB

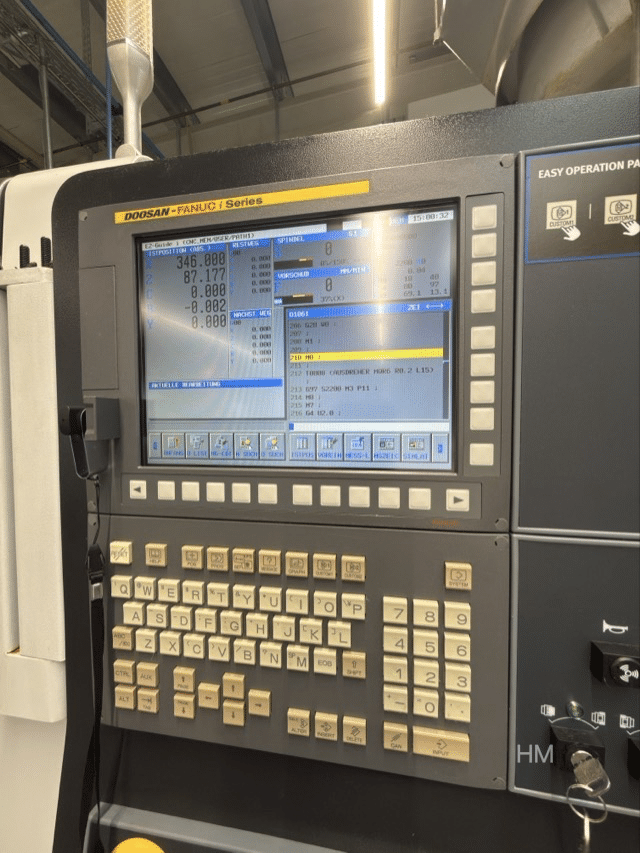

Steuerung: Doosan-FANUC i
Maschinentyp: CNC-Dreh-/Fräszentrum
Baujahr: 2019
Betriebsstunden: ca. 9.000 h

Çalışma alanı

Maks. dönüş çapı: yaklaşık 300 mm
Max. Drehlänge: ca. 510 mm
Umlaufdurchmesser über Bett: ca. 600 mm
Umlaufdurchmesser über Querschlitten: ca. 400 mm
Stangendurchlass: ca. 65 mm

Seyahat mesafeleri

X-Achse: ca. 205 mm
Y-Achse: ca. 105 mm / ±52,5 mm
Z-Achse: ca. 560 mm
Verfahrweg Gegenspindel / B-Achse: ca. 560 mm

Ana mil

Spindeldrehzahl: bis ca. 4.500 U/min
Spindelleistung: ca. 15 kW
Spindelnase: ASA A2-6
Spindelbohrung: ca. 76 mm
Stangendurchlass: ca. 65 mm
C-Achse: vorhanden

Sayaç mili

Max. Drehzahl: ca. 6.000 U/min
Leistung: ca. 5,5 kW
C-Achse: vorhanden
Automatische Werkstückübernahme zwischen Haupt- und Gegenspindel

Werkzeugrevolver

Revolver: BMT45P
Werkzeugstationen: 12
Angetriebene Werkzeuge: vorhanden
Max. Drehzahl angetriebene Werkzeuge: ca. 6.000 U/min

Eilgang

X-Achse: ca. 30 m/min
Z-Achse: ca. 36 m/min

Boyutlar ve ağırlık

Maschinengewicht: ca. 4.200 kg
Abmessungen L × B × H: ca. 2.880 × 1.710 × 1.920 mm

Makine randevu ile görülebilir.
Teknik veri ve bilgilerdeki değişiklikler ve hatalar ile ön satış hakkı saklıdır!

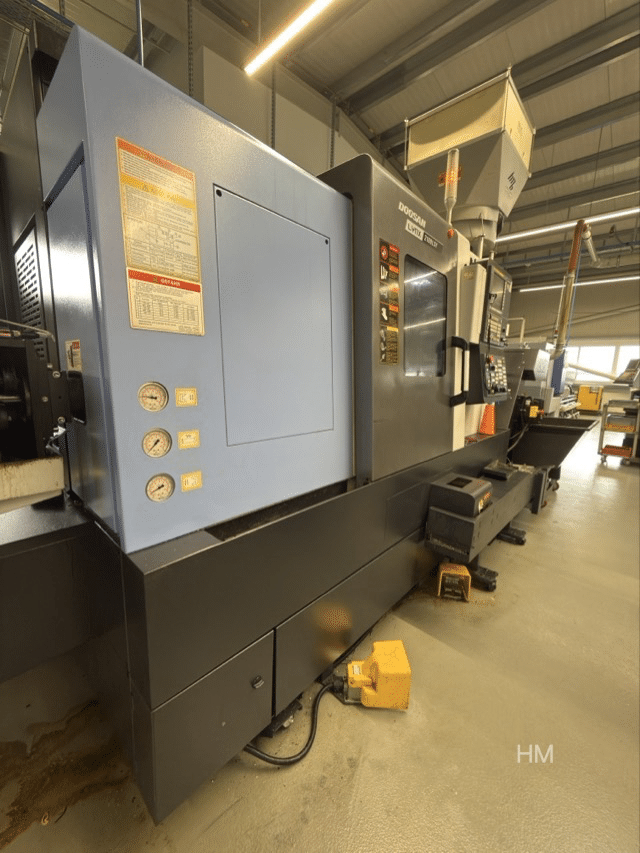

A high-performance and versatile Doosan LYNX 2100 LSYB CNC turning/milling centre, manufactured in 2019, with approximately 9,000 operating hours, is for sale.

Teknik özellikler

Manufacturer: Doosan Machine Tools
Model: LYNX 2100 LSYB

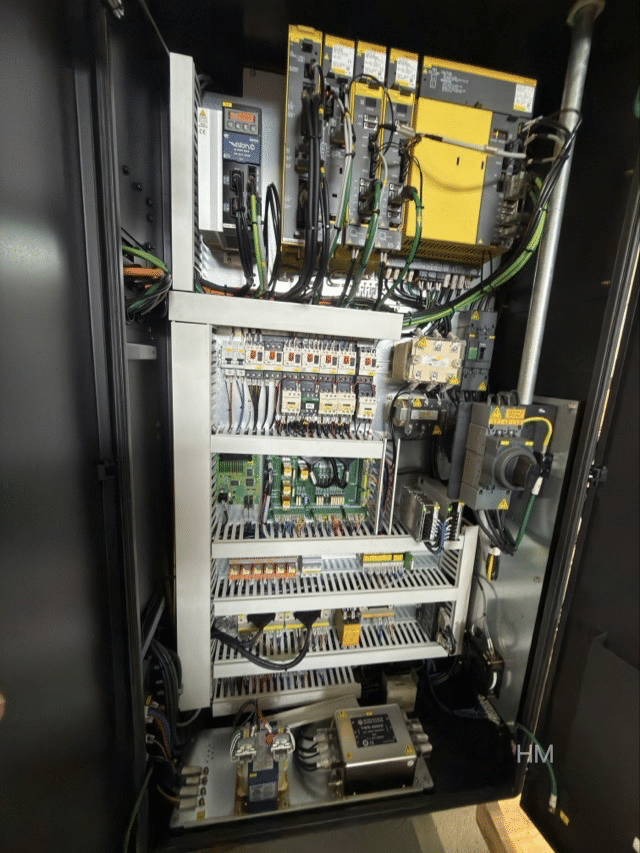

Control system: Doosan-FANUC i
Machine type: CNC turning/milling centre
Year of manufacture: 2019
Operating hours: approx. 9,000 h

Çalışma aralığı

Maks. dönüş çapı: yaklaşık 300 mm
Max. turning length: approx. 510 mm
Swivel diameter over bed: approx. 600 mm
Swivel diameter over cross slide: approx. 400 mm

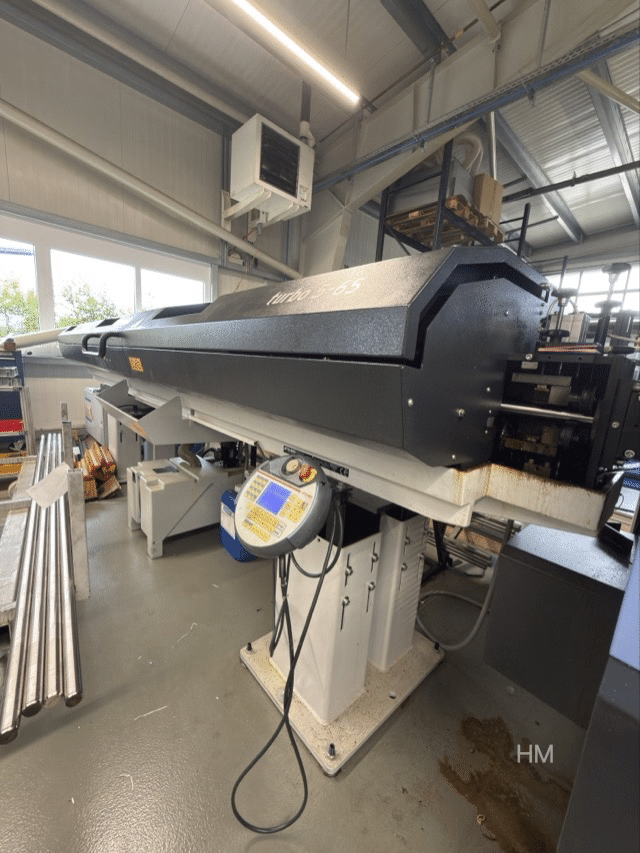

Bar passage: approx. 65 mm

Travel ranges

X-axis: approx. 205 mm
Y-axis: approx. 105 mm / ±52.5 mm
Z-axis: approx. 560 mm
Travel range of counter-spindle / B-axis: approx. 560 mm

Ana mil

Spindle speed: up to approx. 4,500 rpm
Spindle power: approx. 15 kW
Spindle nose: ASA A2-6
Spindle bore: approx. 76 mm
Bar passage: approx. 65 mm
C-axis: fitted

Counter-spindle

Max. speed: approx. 6,000 rpm
Power: approx. 5.5 kW
C-axis: fitted
Automatic workpiece transfer between main and counter-spindles

Tool turret

Turret: BMT45P
Tool stations: 12
Powered tools: available
Max. speed of powered tools: approx. 6,000 rpm

Rapid traverse

X-axis: approx. 30 m/min
Z-axis: approx. 36 m/min

Dimensions and weight

Machine weight: approx. 4,200 kg
Dimensions L × W × H: approx. 2,880 × 1,710 × 1,920 mm

Makine randevu ile görülebilir.
We reserve the right to make changes and corrections to the technical data and specifications, and to sell the machine in the meantime!
