gebr.Hanwha SL26H_Bj.2002_IntNr231299

Descrizione

Posizione: Germania, Baden-Württemberg Sud-Ovest

Zustand: Usato

Hersteller: HANWHA

Modell: HANWHA

Anno di costruzione: 2002

Orario di funzionamento: 78257

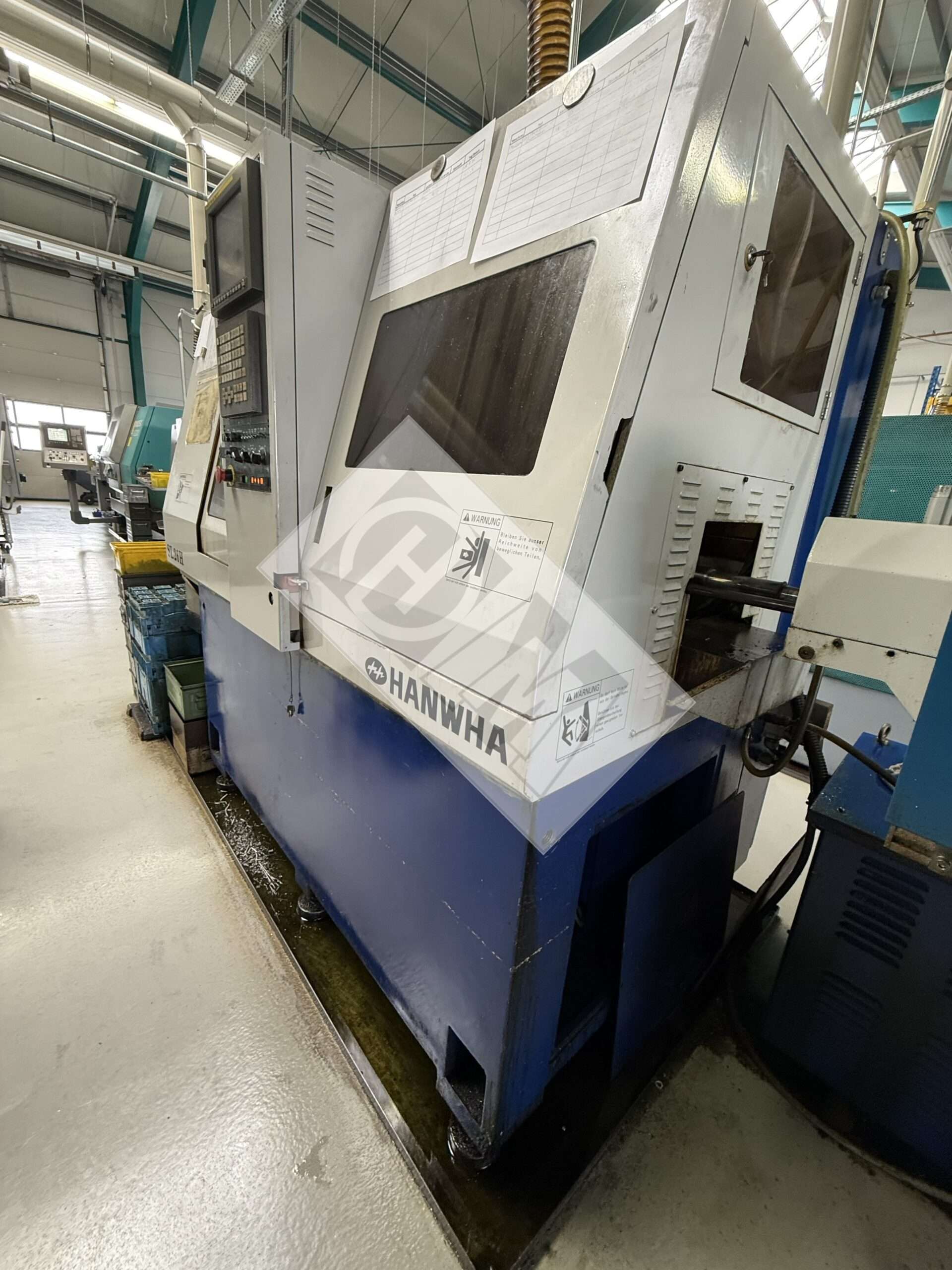

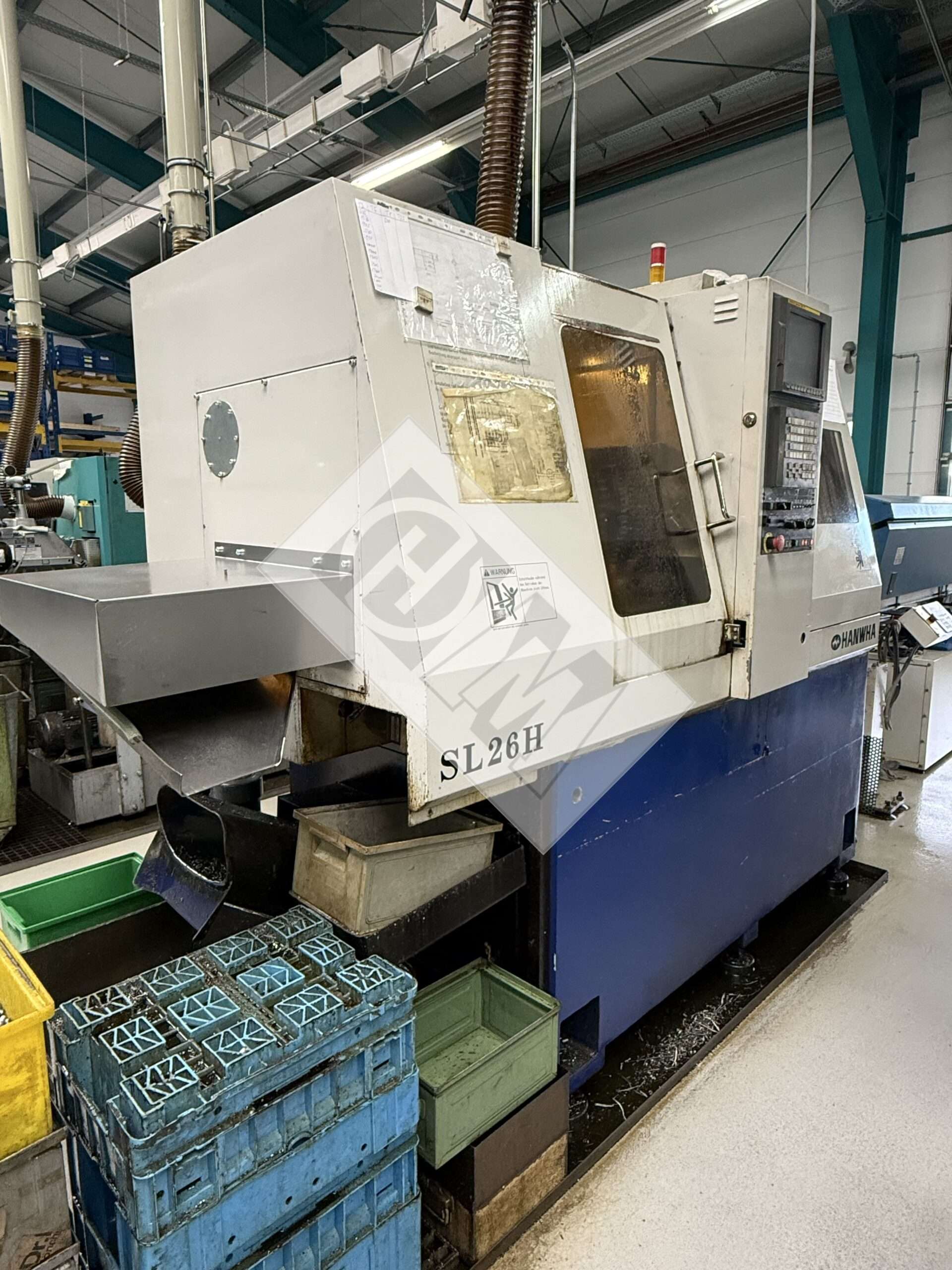

Gebr. HANWHA CNC-Langdrehmaschine Hanwha SL26H (Bj. 2002)
CNC-Steuerung Fanuc 18 i -T
Steuerung Ein: ca. 78257
Automatik – Zeit ca. 2821
Vorschub – Zeit ca. 33929
Datum 19.05.2025
Max. Drehdurchmesser: 26 mm
Hauptspindelhub: 210 mm

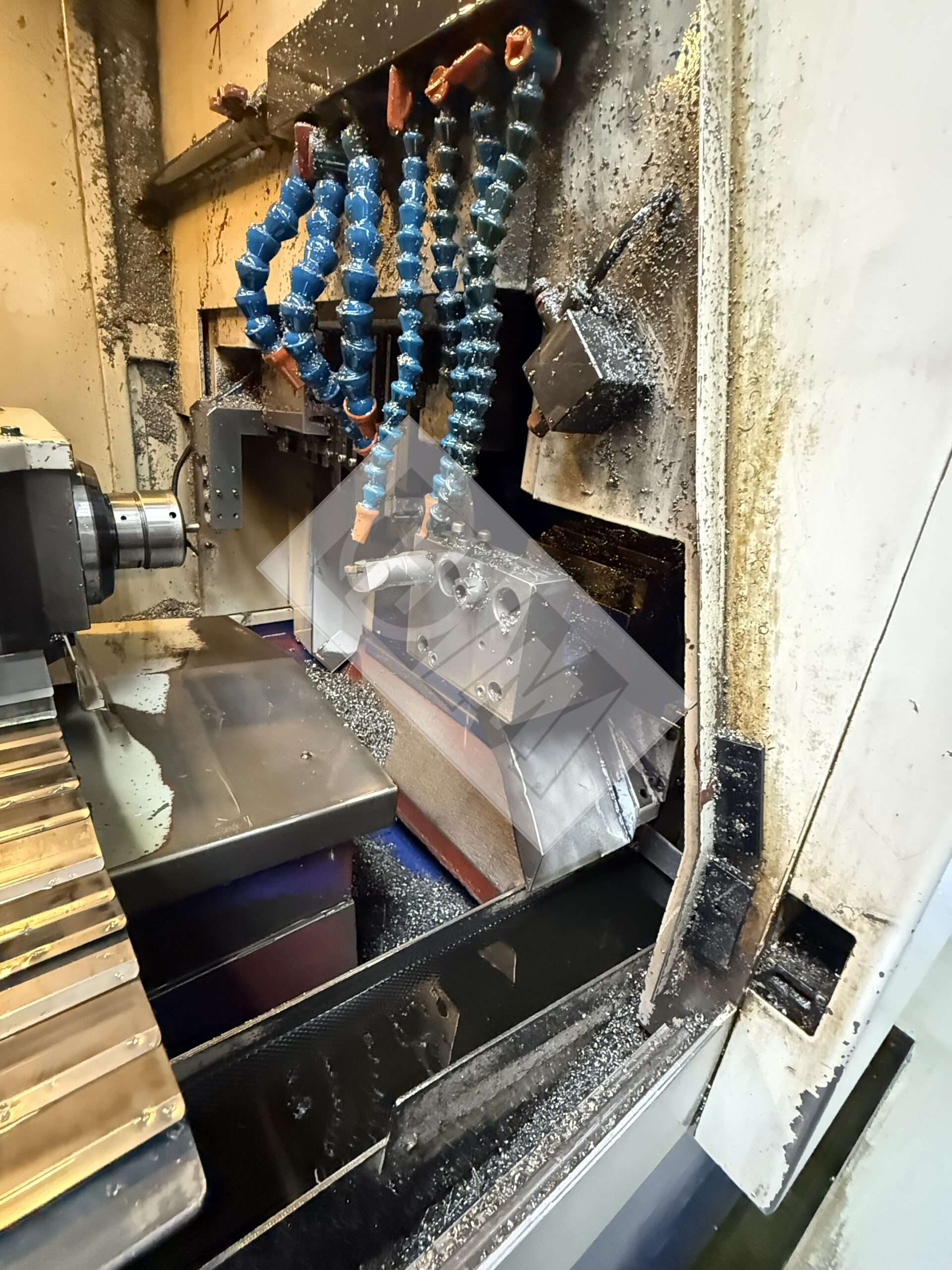

Werkzeughalterplatte für 5 Aussendrehwerkzeuge
Dispositivo di foratura/fresatura trasversale:
– Anzahl: 4 angetriebene Bohr-/Frässpindeln modular
Frontbohrapparat für 3 Bohrpinolen
Lavorazione sul lato opposto
4 Positionen

Visualizzazione del tempo di funzionamento / contatore dei pezzi
Teileförderband
Interfaccia scheda CF
Kühlmitteleinsatz der Maschine: Öl
Compensazione del raggio utensile
Abführung Langerteile
Spia luminosa (a 3 colori)
Kühlmittelpumpe

Abmessungen (BxLxH) ca. 1.200 × 1.950 × 1.670 mm

Gewicht: ca. 3000 kg

Accessori

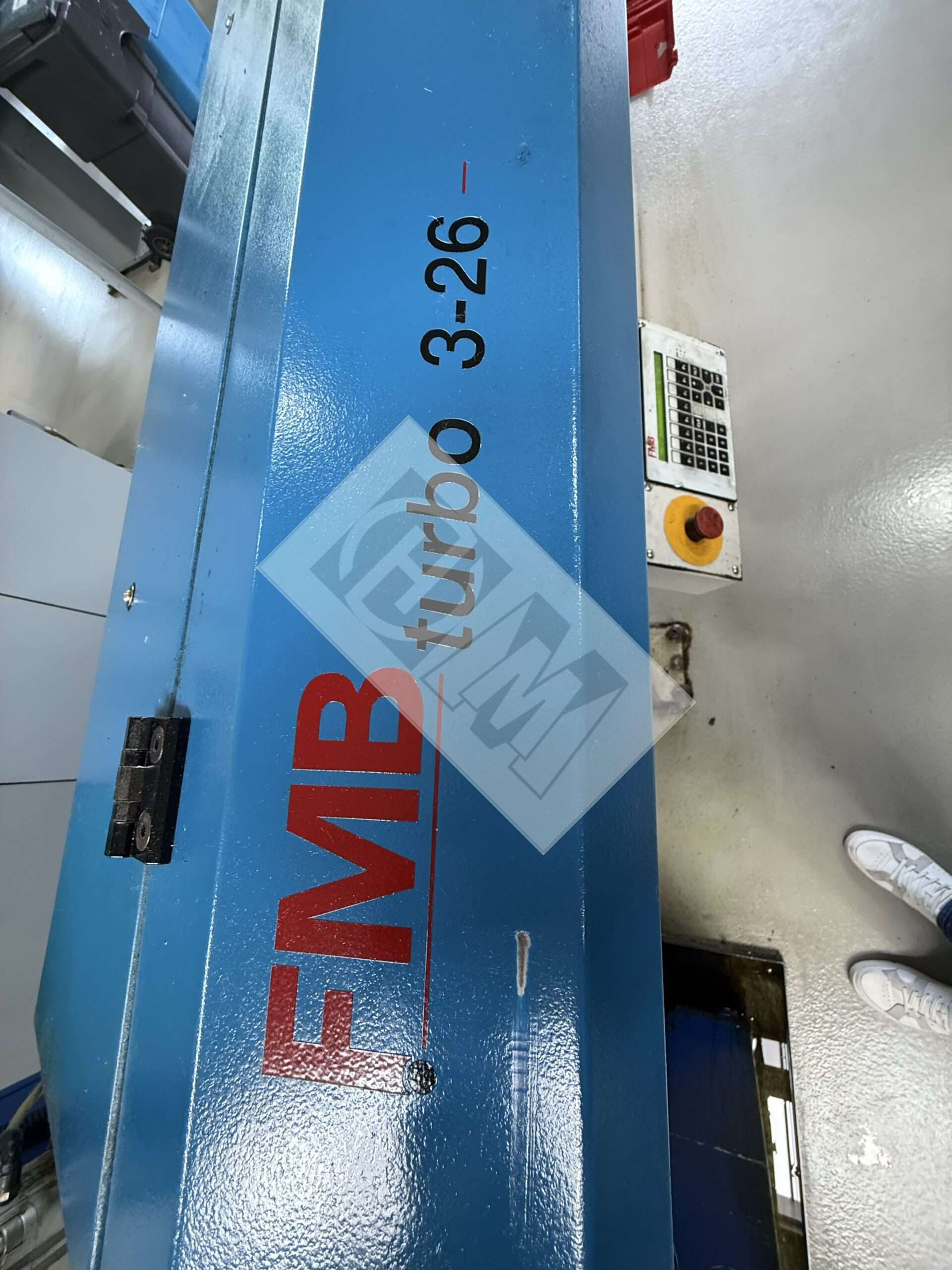

Stangenlademagazin FMB Turbo 3-26
3-26mm/3200mm Anbauvariante „A“ Bj. 2002
Dimensioni del magazzino di carico: circa 4220 x 620 x 1800 [mm]. Peso del magazzino di carico: circa 600 [kg]

Späneförderer
HD Hochdruckpumpe

Abmessungen Späneförderer & HD Hochdruckpumpe: ca. 1000 x 800 x 800 [mm] Gewicht Peripherie & Zubehör: ca. 200 [kg]

Abmessungen Peripherie & Zubehör: ca. 800 x 800 x 800 [mm] Gewicht Peripherie & Zubehör: ca. 100 [kg]

Die Maschine kann nach Terminvereinbarung Strom besichtigt werden.
Con riserva di modifiche ed errori nei dati tecnici e nelle informazioni, nonché di vendita anticipata!

Used HANWHA CNC Long‐Turn Lathe SL26H (Year 2002)

CNC Control: Fanuc 18i‑T
‑ Control Hours: approx. 78,257 h
‑ Automatic Cycle Time: approx. 2,821 h
‑ Feed Time: approx. 33,929 h

Date of Specification: May 19, 2025

1. Machine Specifications
Max. Turning Diameter: 26 mm

Spindle Stroke: 210 mm

Tool Turret: 5 positions for OD turning tools

Cross‐Drilling/Milling Unit:

4 driven, modular drill/mill spindles

Front‐Drilling Attachment: 3 drill spindles

Backworking Unit: 4 positions

Running Hours & Parts Counter

Parts Conveyor Belt

CF‐Card Interface

Coolant Type: Oil‐based machine coolant

Tool Radius Compensation

Long‑Part Removal System

Signal Tower Light (3‑color)

Coolant Pump

Dimensions (W × D × H) approx. 1,200 × 1,950 × 1,670 mm
Weight (machine) approx. 3,000 kg

2. Accessories

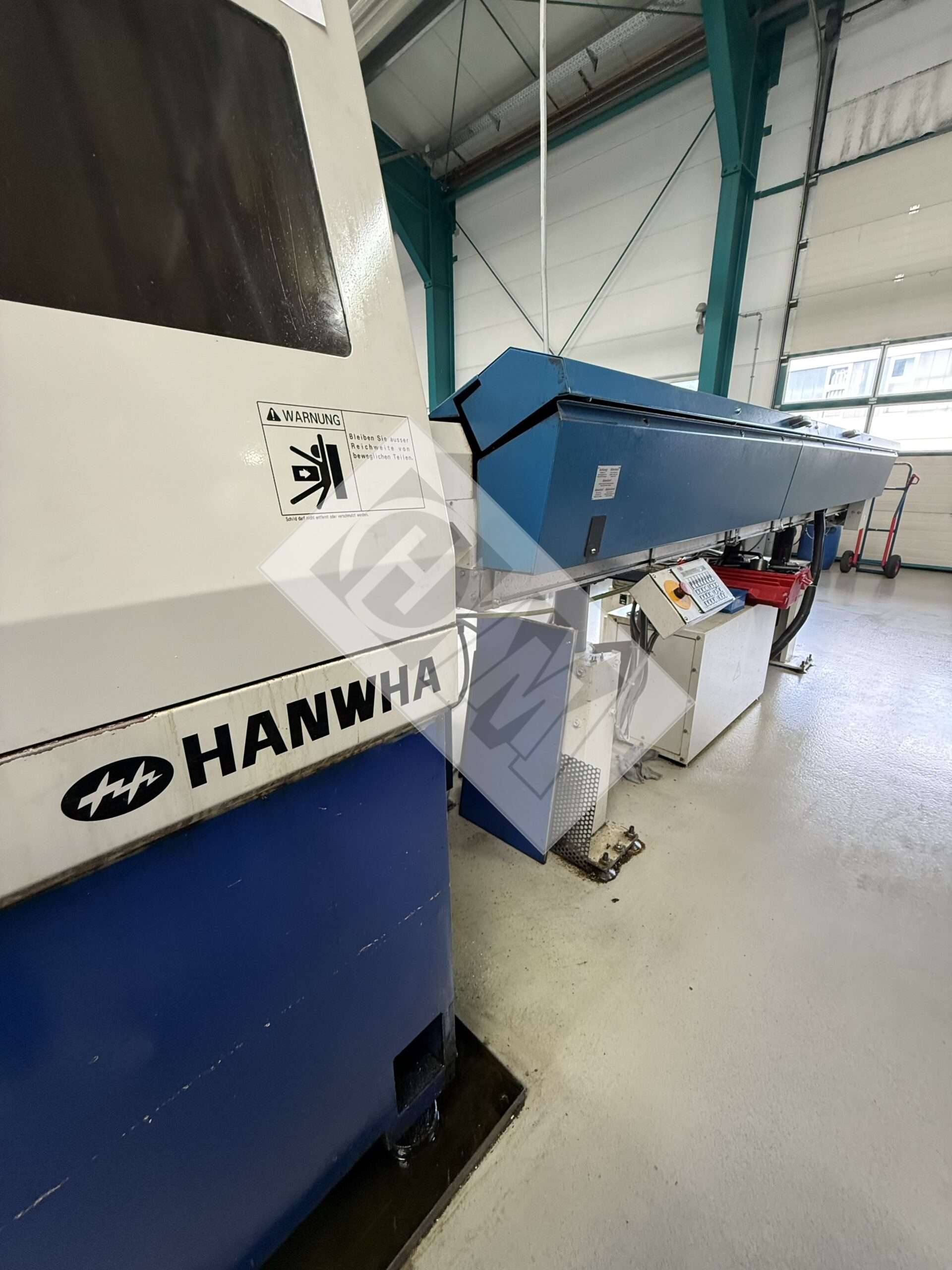

Bar Feeder: FMB Turbo 3‑26 (3–26 mm / 3,200 mm), “A” mounting version, Year 2002

Dimensions: approx. 4,220 × 620 × 1,800 mm

Weight: approx. 600 kg

Chip Conveyor

High‑Pressure Coolant Pump

Combined dimensions (conveyor & pump): approx. 1,000 × 800 × 800 mm

Combined weight: approx. 200 kg

Additional Peripherals & Accessories

Dimensions: approx. 800 × 800 × 800 mm

Weight: approx. 100 kg

Inspection: The machine can be inspected under power by appointment.
Note: Technical data and information are subject to change, errors excepted, and prior sale.
