Star SB-20R_G_Bj.2022_IntNr231607

Description

Location: Germany, Baden-Württemberg Southwest

Zustand: Used

Hersteller: STAR Micronics

Modell: STAR Micronics

Year of construction: 2022

Operating hours: 18498

Star Bros. SB20R _G
Bj. 2022
Betriebsstunden 4200

CNC control FANUC 0i-TD with 7 axes
C-axis on main spindle and counter spindle
Convertible from long to short turner
Synchronously driven guide bush unit
Main spindle:
Drehzahl (max.) 10.000 U/min
Leistung (max.) 3,7 kW
Stangendurchlass 21 mm
Verfahrweg in Z 205 mm
Counter spindle:
Drehzahl (max.) 9.000 U/min
Leistung (max.) 1,1 kW
Ausstoßer Pneumatisch
Hinged belt conveyor
Lademagazin FMB minimag 20 / 3200
Subject to changes and errors in the technical data and information!

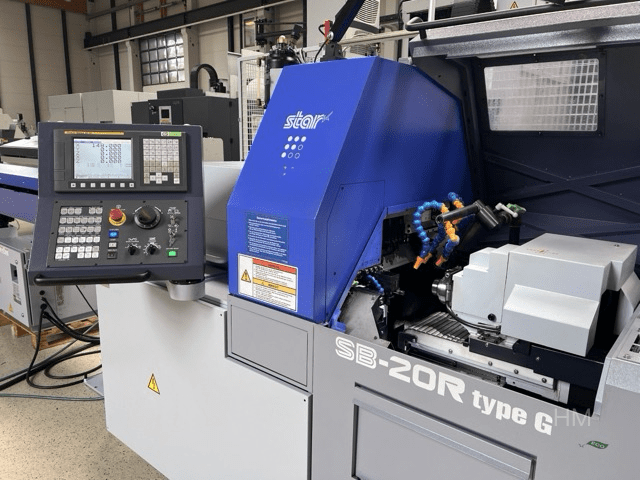

Star Micronics SB-20R Type G
Year of manufacture: 2022
Operating hours: 4,200

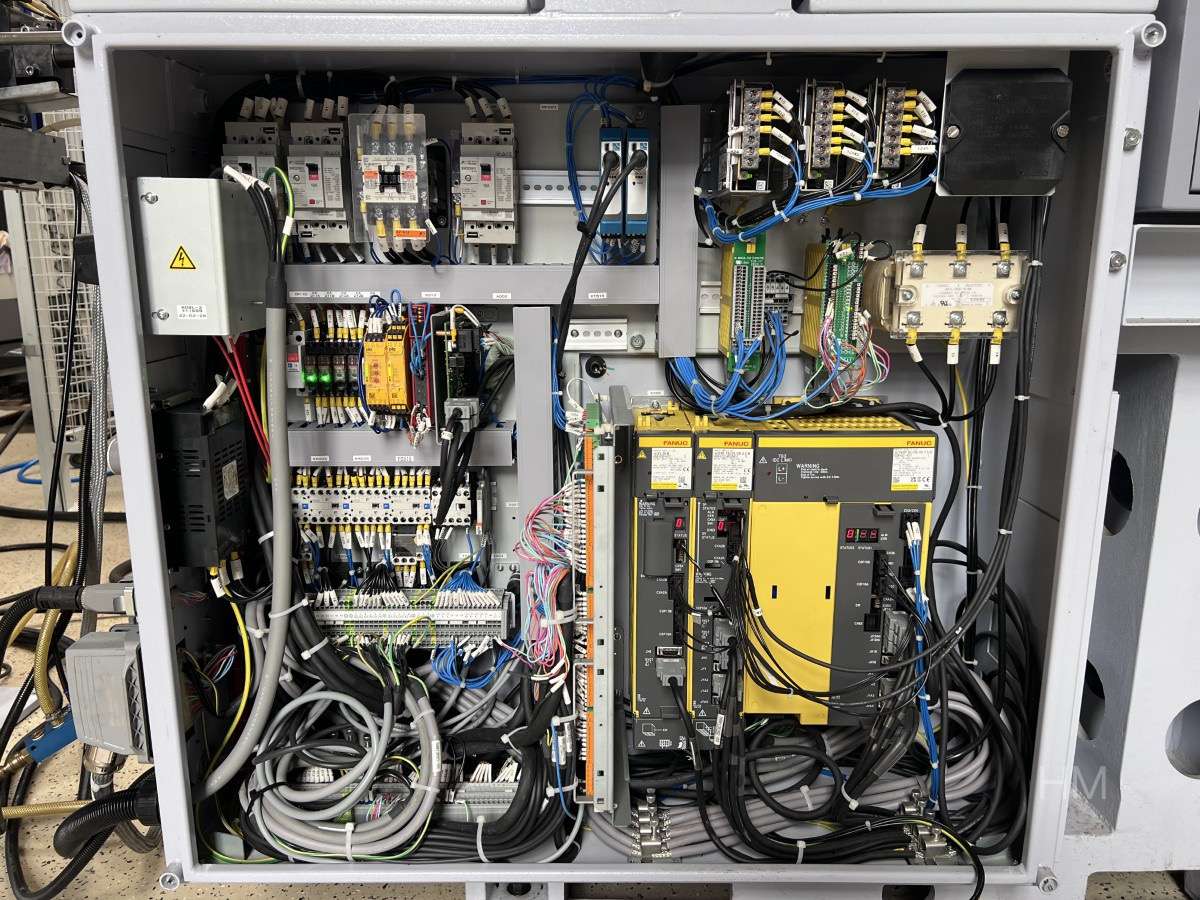

CNC control FANUC 0i-TD with 7 axes
C-axis on main spindle and sub spindle
Convertible from sliding headstock to fixed headstock operation
Synchronized driven guide bushing unit

Main spindle:
Max. spindle speed: 10,000 rpm
Max. power: 3.7 kW
Bar capacity: 21 mm
Z-axis travel: 205 mm

Sub spindle:
Max. spindle speed: 9,000 rpm
Max. power: 1.1 kW

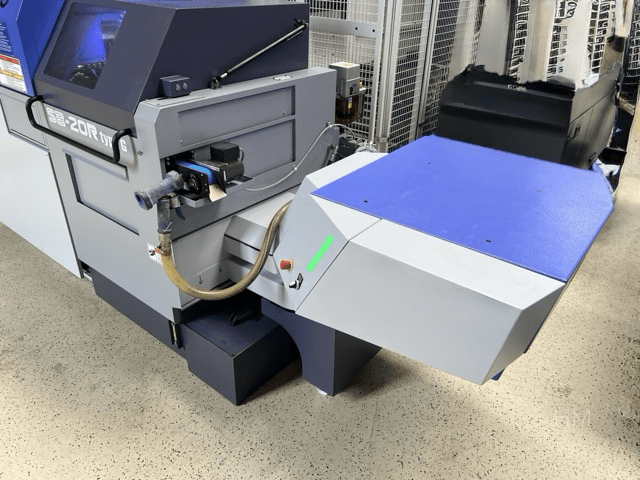

Pneumatic parts ejector
Hinged belt chip conveyor

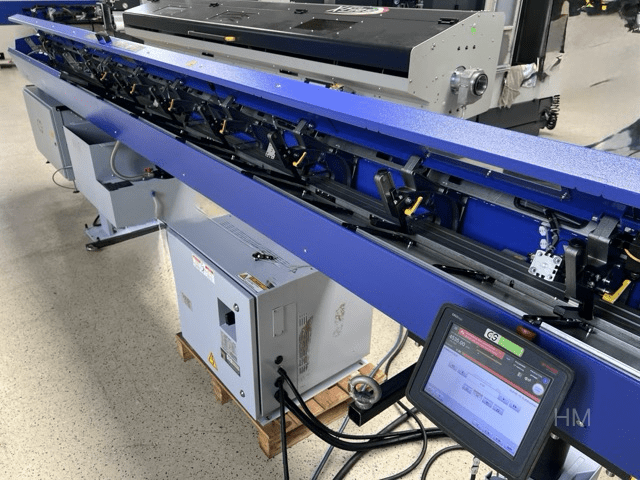

Bar feeder FMB Maschinenbaugesellschaft Minimag 20 / 3200

Technical data subject to change without notice. Errors excepted.
