Haas VF-2SS HE_4_5-Axes_Bj.11_2006_ IntNr231427

Description

Location: Germany, Baden-Württemberg Southwest

Zustand: Used

Hersteller: HAAS

Modell: HAAS

Year of construction: 2006

Haas VF-2SS HE (year 2006) - 4/5-axes
Operating hours:
Machine type: Vertical machining centre (CNC) - Haas VF-2SS HE
Year of construction: 2006
Control unit: Haas NGC
Drive type: High-speed spindle (High Efficiency)
Axis capability: 4- / 5-axis machining

Mechanical data
Travelling distances:
X-axis: 762 mm
Y-axis: 406 mm
Z-axis: 508 mm
Table surface: 762 x 406 mm
Table load: up to 450 kg
Spindle / drive
Spindle type: Inline high-speed spindle
Speed range: up to 12,000 rpm

Axle drives
X/Y/Z axis: recirculating ball screw, precision guides
4th/5th axis: swivelling table / rotary table integrated, CNC-controlled

Revolver magazine
Capacity: 24 tool places
Späneförderer

Electrical voltages: 400 V, 50 Hz, 3-phase

Footprint / installation dimensions: approx. 2,200 mm x 2,000 mm (W x D)

Machine weight: approx. 3,600 kg

Machine electrically and mechanically fully functional
Technical documentation

Die Maschine kann nach Terminvereinbarung Strom besichtigt werden.
Changes and errors in the technical data and information as well as prior sale reserved!

Haas VF-2SS HE (Year 2006) - 4/5-Axis
Operating hours:on request
Machine type: Vertical Machining Centre (CNC) - Haas VF-2SS HE
Year of manufacture: 2006
Control: Haas NGC
Drive system: High-speed spindle (High Efficiency)
Axis capability: 4- / 5-axis machining
Mechanical Data
Travels:
X-axis: 762 mm
Y-axis: 406 mm
Z-axis: 508 mm
Table size: 762 × 406 mm
Table load:up to 450 kg
Spindle / Drive
Spindle type: Inline high-speed spindle
Speed range: up to 12,000 rpm
Axis Drives
X/Y/Z axes: Ball screw drives, precision linear guides
4th / 5th axis: Integrated tilting/rotary table, CNC-controlled

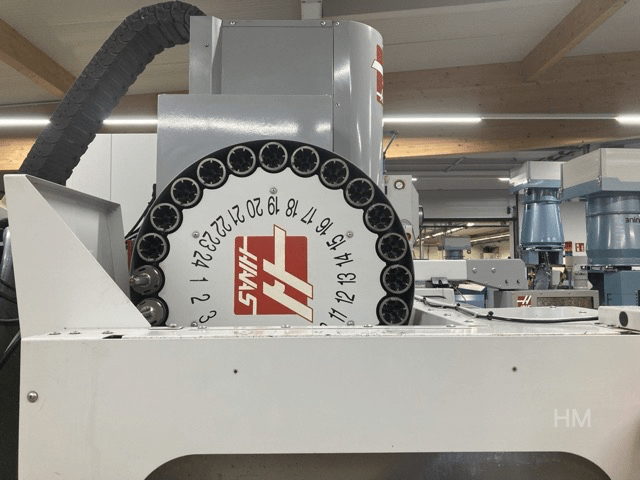

Tool Magazine
Capacity:24 tool positions
Chip conveyor:Yes
Electrical Data
Power supply: 400 V, 50 Hz, 3-phase
Dimensions / Weight

Floor space: approx. 2,200 × 2,000 mm (W × D)
Machine weight: approx. 3,600 kg

Condition / Notes
Machine is fully functional electrically and mechanically
Technical documentation available

Machine can be inspected under power by appointment ubject to prior sale. Technical data and descriptions are subject to change and errors.
